The King

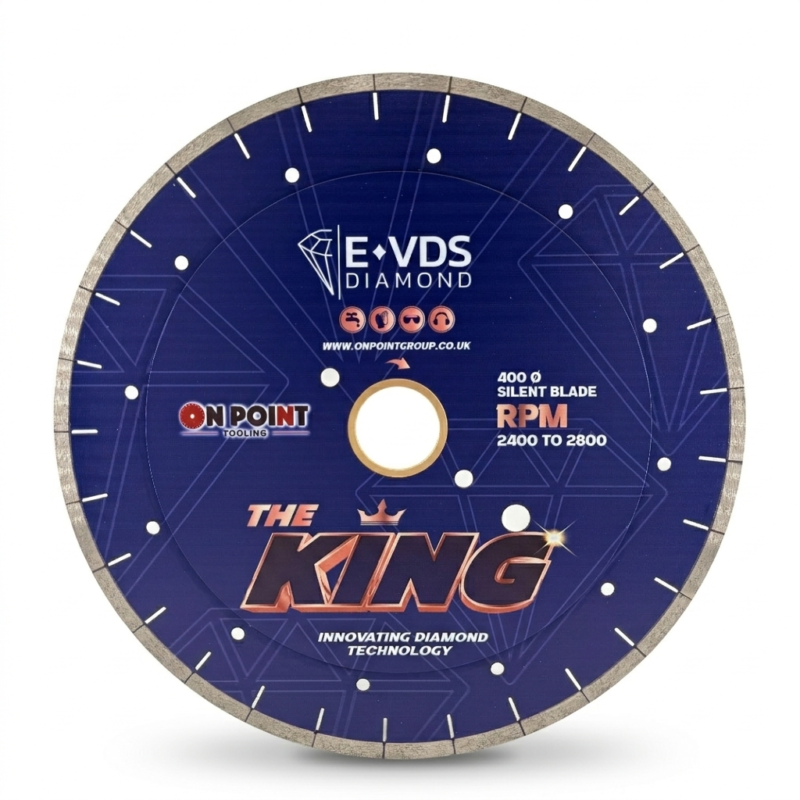

The King UCS Saw Blade by E-VDS®
Where precision wears the crown. Engineered for ultra-compact surfaces, sintered stone and porcelain, The King combines precision, durability and cutting performance in one premium blade. Its unique integrated lubrication technology reduces heat and stress at the cutting edge, helping to achieve cleaner finishes and superior mitre quality on the most demanding materials.
Breton & Donatoni Holes Included
Made in Spain
Variations
| Code | Diameter | Segment Width | Segment Height | Fitting | Stock | Price | Qty | |
|---|---|---|---|---|---|---|---|---|
| TBBS-EVD-CPK350-0 | 350 mm | 2.4 mm | 10 mm | Bore 50/60 | £210.00 |
|
||
| TBBS-EVD-CPK400-0 | 400 mm | 2.4 mm | 10 mm | Bore 50/60 | £250.00 |
|
||
| TBBS-EVD-CPK450-0 | 450 mm | 2.4 mm | 10 mm | Bore 50/60 | £340.00 |
|
Working Parameters
| 90° Straight Cuts | |||
| Ø | RPM | Feed-Rates [m/min] | |
| 12 mm | 20 mm | ||
| 350 | - | - | - |
| 400 | 2400-2800 | 1.8-2.5 | 1.8-2.0 |
| 450 | - | - | - |
| 45° Mitre Cuts | |||
| Ø | RPM | Feed-Rates [m/min] | |
| 12 mm | 20 mm | ||
| 350 | - | - | - |
| 400 | 2400-2800 | 1.0-1.5 | 0.8-1.2 |
| 450 | - | - | - |
Product Details
The King is engineered for processing materials with low fracture toughness and high internal tension, such as Dekton and vitrified technical ceramics. The diamond segments feature integrated lubrication to reduce thermal friction at the cutting interface. This lowers mechanical shock during processing, maintaining edge integrity and geometric precision during high-feed mitre cuts.
Continuous operation on alternative, abrasive materials will alter the matrix wear rate. To maintain maximum cutting efficiency, operators must cycle the blade back into high-density UCS processing or dress the segments regularly to restore the optimal diamond exposure.
Technical Features
-
Lubricated Diamond Segments: Minimises interface temperature to prevent thermal shock and micro-cracking.
-
Edge Precision: Formulated for high-density, low-ductility materials to eliminate secondary edge finishing procedures.
-
Angular Execution: Optimised matrix stability under lateral stress during 45 degree mitre operations.
Delivery & Returns
Free UK delivery on orders over £300.
Standard orders are dispatched same day when placed before 3pm Monday–Friday. Next-day delivery is available on most stocked items.
For larger or pallet items, delivery arrangements will be confirmed at the time of order.
Returns: Please contact our team within 14 days of receipt. Items must be unused and in original packaging.
