The Enzo

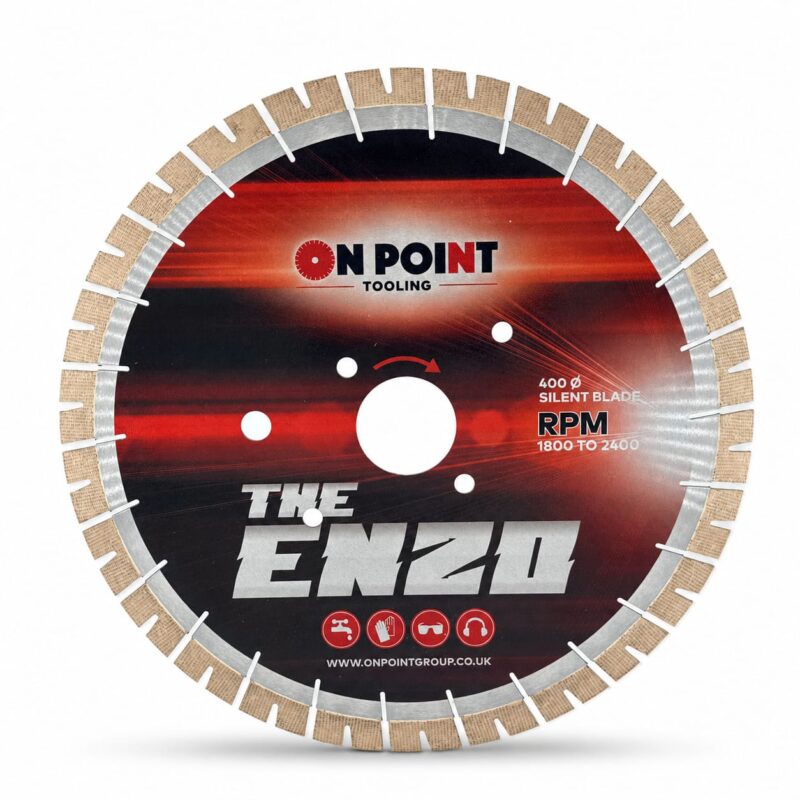

The Enzo Quartz/Granite Saw Blade by E-VDS®
Where speed meets stability. The Enzo is engineered to thrive in demanding fabrication environments, delivering the perfect balance of speed, precision and durability. Its sound dampening sandwich core reduces vibration and noise while maintaining exceptional cutting stability. The result is a blade that cuts faster, lasts longer and performs consistently from the first slab to the last.
Breton & Donatoni Holes Included
Made in Spain
Variations
| Code | Diameter | Segment Width | Segment Height | Fitting | Stock | Price | Qty | |
|---|---|---|---|---|---|---|---|---|
| TBBS-EVD-QZE300-0 | 300 mm | 3.2 mm | 20 mm | Bore 50/60 | £150.00 |
|
||
| TBBS-EVD-QZE350-0 | 350 mm | 3.2 mm | 20 mm | Bore 50/60 | £165.00 |
|
||
| TBBS-EVD-QZE400-0 | 400 mm | 3.4 mm | 25 mm | Bore 50/60 | £185.00 |
|
||
| TBBS-EVD-QZE450-0 | 450 mm | 4.0 mm | 20 mm | Bore 50/60 | £210.00 |
|
||
| TBBS-EVD-QZE500-0 | 500 mm | 4.0 mm | 20 mm | Bore 50/60 | £265.00 |
|
||
| TBBS-EVD-QZE625-0 | 625 mm | 4.6 mm | 20 mm | Bore 50/60 | £420.00 |
|
Working Parameters
| 90° Straight Cuts | |||||
| Ø | RPM | Granite Feed-Rates [m/min] | Quartz Feed-Rates [m/min] | ||
| 20 mm | 30 mm | 20 mm | 30 mm | ||
| 300 | - | - | - | - | - |
| 350 | 1800-2400 | 1.8-2.5 | 1.2-2.2 | 3.5-10.0 | 3.5-8.0 |
| 400 | 1800-2400 | 1.8-2.5 | 1.2-2.2 | 3.5-10.0 | 3.5-8.0 |
| 450 | 1650-2350 | 1.6-2.3 | 1.2-2.0 | 3.5-7.0 | 3.0-6.0 |
| 500 | - | - | - | - | - |
| 625 | - | - | - | - | - |
| 45° Mitre Cuts | |||||
| Ø | RPM | Granite Feed-Rates [m/min] | Quartz Feed-Rates [m/min] | ||
| 20 mm | 30 mm | 20 mm | 30 mm | ||
| 300 | - | - | - | - | - |
| 350 | 1800-2400 | 1.5-2.0 | 1.3-2.0 | 2.0-5.0 | 2.0-4.0 |
| 400 | 1800-2400 | 1.5-2.0 | 1.3-2.0 | 2.0-5.0 | 2.0-4.0 |
| 450 | 1650-2350 | 1.5-2.0 | 1.3-2.0 | 2.0-5.0 | 2.0-4.0 |
| 500 | - | - | - | - | - |
| 625 | - | - | - | - | - |
Product Details
The Enzo is a heavy duty production blade designed for high throughput processing of engineered quartz and natural granite surfaces. Utilising structured geometric diamond distribution, the segments ensure that fresh, high concentration diamond points are continuously exposed to the workpiece in a uniform pattern to handle both highly abrasive granites and dense engineered stones.
This variant features a specialised sandwich steel core layered with sound dampening composite. This design keeps structural vibrations apart, lowering decibel output under high loads while reducing vibration transmission to the saw spindle to ensure straight cuts and mitre cuts.
Technical Features
-
Aligned Diamond Matrix: Programmed geometric segment layout guarantees constant diamond exposure, reducing glazing under cutting feeds.
-
Acoustic Decibel Suppression: Layered sandwich steel core reduces noise output.
-
Vibration Control: Enhances straight cuts, and reduces vibration transmitted to the spindle.
Cutting Configurations
-
90 Degree Straight Cutting: Optimised for high-speed linear cuts, maximising linear metre yield per production shift.
-
45 Degree Mitre Cutting: The vibration-dampening silent core provides excellent geometric path tracking when the saw head is bevelled, provides brilliant mitre cuts.
Delivery & Returns
Free UK delivery on orders over £300.
Standard orders are dispatched same day when placed before 3pm Monday–Friday. Next-day delivery is available on most stocked items.
For larger or pallet items, delivery arrangements will be confirmed at the time of order.
Returns: Please contact our team within 14 days of receipt. Items must be unused and in original packaging.
