Hercules

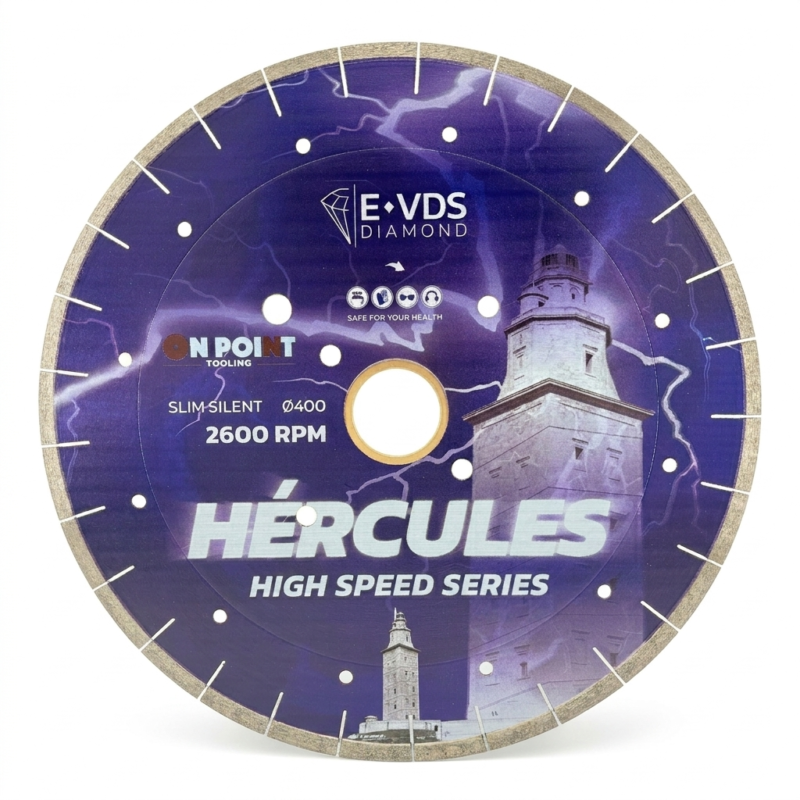

The Hercules UCS Saw Blade by E-VDS®
When strength meet precision. Engineered for ultra-compact surfaces (UCS) and porcelain, The Hercules delivers the same high-performance cutting characteristics expected from the E-VDS range, with a focus on durability, stability and consistent results. Designed for both straight and mitre cutting applications, it provides excellent cutting speeds, outstanding edge quality and dependable blade life across a wide range of ceramic materials.
Breton & Donatoni Holes Included
Made in Spain
Variations
| Code | Diameter | Segment Width | Segment Height | Fitting | Stock | Price | Qty | |
|---|---|---|---|---|---|---|---|---|
| TBBS-EVD-CPH350-0 | 350 mm | 2.4 mm | 10 mm | Bore 50/60 | £170.00 |
|
||
| TBBS-EVD-CPH400-0 | 400 mm | 2.4 mm | 10 mm | Bore 50/60 | £185.00 |
|
||
| TBBS-EVD-CPH450-0 | 450 mm | 2.4 mm | 10 mm | Bore 50/60 | £220.00 |
|
Working Parameters
| 90° Straight Cuts | |||
| Ø | RPM | Feed-Rates [m/min] | |
| 12 mm | 20 mm | ||
| 350 | - | - | - |
| 400 | 2600 | 1.8-2.3 | 1.8-2.0 |
| 450 | - | - | - |
| 45° Mitre Cuts | |||
| Ø | RPM | Feed-Rates [m/min] | |
| 12 mm | 20 mm | ||
| 350 | - | - | - |
| 400 | 2600 | 1.3-1.6 | 0.8-1.2 |
| 450 | - | - | - |
Product Details
The Hercules is designed for high-volume fabrication of ultra-compact surfaces (UCS), porcelain and sintered materials. Built for strength, consistency and long-term reliability, it delivers fast cutting performance, excellent edge quality and dependable blade life across a wide range of ceramic materials.
The Hercules has been specifically developed for ceramic applications. While occasional use on quartz can help refresh the cutting edge and maintain blade performance, it is not intended for regular quartz fabrication. Prolonged use on quartz or other highly abrasive materials will accelerate blade wear and significantly reduce overall tool life. For maximum performance and blade longevity, The Hercules should be used primarily on the materials it was designed to process.
Technical Features:
- High-Density Bond Matrix: Engineered for rapid slurry evacuation when cutting non porous, vitrified surfaces.
- Cost Efficiency: Delivers premium cutting performance metrics optimised for high volume production workshops.
- Core Integrity: Reinforced steel core engineered to withstand directional forces encountered during bevelling and mitre cutting.
Cutting Configurations:
- 90 Degree Straight Cutting: Optimised for stable, continuous production line processing at low cost per metre.
- 45 Degree Mitre Cutting: Demands precise adherence to lower feed speeds to avoid blade wandering and ensure consistent edge alignment.
Delivery & Returns
Free UK delivery on orders over £300.
Standard orders are dispatched same day when placed before 3pm Monday–Friday. Next-day delivery is available on most stocked items.
For larger or pallet items, delivery arrangements will be confirmed at the time of order.
Returns: Please contact our team within 14 days of receipt. Items must be unused and in original packaging.
The Queen
The King

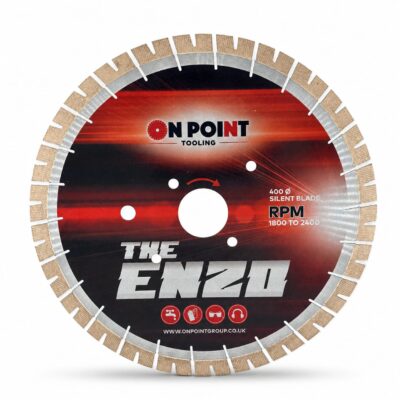

The Enzo

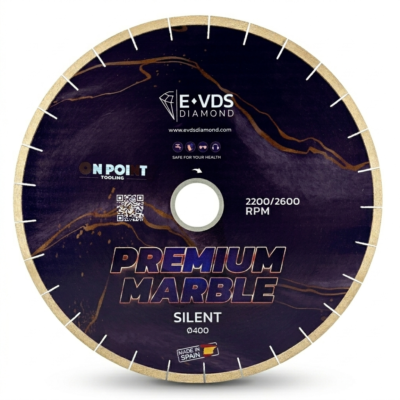

Premium Marble
