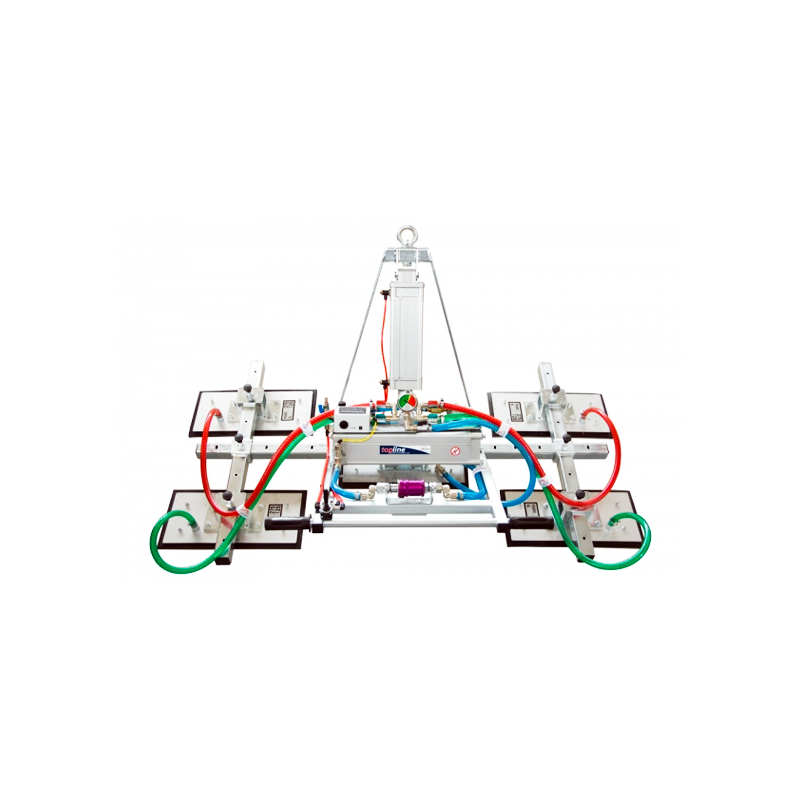

Manzelli, TopLine, VAM 5PN

The VAM 5PN Vacuum Lifter by Manzelli®
When strength meets precision. Engineered for marble, oversized stone slabs, and heavy fragile materials, The VAM 5PN delivers the same high-performance handling characteristics expected from the Top Line range, with a focus on durability, stability and consistent results. Designed for both horizontal and vertical handling applications, it provides excellent lifting speeds, outstanding material protection and dependable operations across high-capacity stone workshops.
Pneumatic 0° to 90° Tilting System Included
Made in Italy

£0.00 exc. VAT

Need more info? Get in touch

Free delivery on orders over £300

Variations

Code	Line	Capacity	Pads	A	B	C	Height	Price
TLVL-MNZ-T5AP01-0	TopLine	625kg	5	450mm	200mm	780mm	865mm	£0.00	Unavailable
TLVL-MNZ-T5AP02-0	TopLine	1000kg	5	450mm	300mm	780mm	870mm	£0.00	Unavailable
TLVL-MNZ-T5AP03-0	TopLine	1500kg	5	600mm	300mm	780mm	1040mm	£0.00	Unavailable

Back Order In Stock Not available for order

Working Parameters

Product Details

Moving exceptionally large, heavy, or structurally delicate slabs requires a material-handling system that maximizes surface support and minimizes material flexing. Part of the premium Top Line series, the Manzelli VAM 5PN is an industrial-grade pneumatic vacuum lifter engineered specifically for processing oversized natural stone, quartz, and sintered porcelain panels.

Featuring an advanced 5-pad linear structural configuration, this heavy-duty system extends the gripping area across the full length of the workpiece, distributing lifting forces perfectly to prevent breakage in brittle or fractured slabs. Powered completely by compressed air, it eliminates the need for electrical connections or battery reliance, ensuring a continuous, failure-safe vacuum lock that is ideal for harsh, wet fabrication environments.

Technical Features

Oversized Five-Pad Configuration: Built with 5 premium, highly resilient suction pads spread across a heavy-duty frame to drastically reduce slab deflection and overhang stress during transport.
Pneumatic Multi-Axis Tilt: Features a powerful, air-driven 0° to 90° tilting mechanism, letting the operator smoothly transition massive slabs from vertical transport racks to horizontal cutting lines.
Venturi Air System Efficiency: Driven by a heavy-duty compressed air ejector with an integrated silencer, delivering high-speed suction and instant release commands while keeping noise levels low.
Structural Failure Prevention: Equipped with a rugged, welded steel frame, high-grip suction plates, and an integrated aluminum safety reservoir tank designed to maintain a secure vacuum seal even during a sudden shop air line failure.
Visual Status Monitoring: Includes a premium, glycerine-dipped stainless steel vacuum gauge with a bold, color-coded safety scale for reliable pressure checks from a safe operating distance.
Dual-Action Slider Valve: Built with a physical locking device in the “connect” position to eliminate accidental release and ensure complete operational authority during movement.

Tool Application Style

Large-Format Slab Manipulation: The definitive choice for overhead crane hooks, jib systems, and gantry hoists managing oversized or long-span granite, marble, and quartz materials.
High-Capacity Workflows: Engineered to support heavy structural demands, offering maximum safety ratings and load handling capacities ranging up to 1,500 kg depending on specific pad configuration options.
