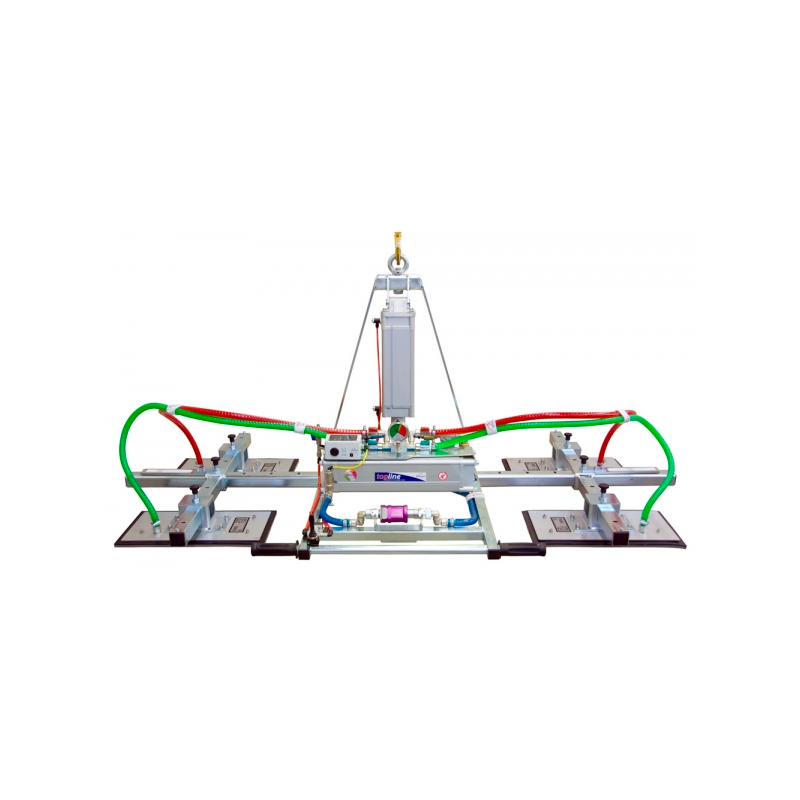

The VAM 4PN KTV Vacuum Lifter by Manzelli®
When strength meets precision. Engineered for marble, wide kitchen islands, and L-shaped stone slabs, The VAM 4PN KTV delivers the same high-performance handling characteristics expected from the Top Line range, with a focus on durability, stability and consistent results. Designed for both horizontal and vertical handling applications, it provides excellent lifting speeds, outstanding material protection and dependable operations across custom fabrication workshops.
Pneumatic 0° to 90° Tilting System Included
Made in Italy

£0.00 exc. VAT

Need more info? Get in touch

Free delivery on orders over £300

Variations

Code	Line	Capacity	Pads	A	B	C	Height	Price
TLVL-MNZ-T4APV3-0	TopLine	1000kg	4	-	-	-	-	£0.00	Unavailable
TLVL-MNZ-T4APV2-0	TopLine	500kg	4	550mm	150mm	780mm	865mm	£0.00	Unavailable
TLVL-MNZ-T4APV1-0	TopLine	500kg	4	-	-	-	-	£0.00	Unavailable

Back Order In Stock Not available for order

Working Parameters

Product Details

Transporting complex stone layouts, wide kitchen islands, and pieces with integrated sink cutouts requires a lifting configuration that addresses off-center weight distributions. A premium addition to the Top Line series, the Manzelli VAM 4PN KTV features a specialized “Kitchen Top Vertical/Variable” (KTV) cross-pad layout engineered to handle wider, non-linear, and structurally delicate stone countertops.

By arranging its 4 high-grip suction pads on adjustable cross-arms, this lifter allows operators to position the pads exactly where the material is structurally strongest. Driven completely by compressed air, it eliminates electric line dependencies, providing a safe, reliable, and smooth non-marring vacuum seal that protects pristine polished or textured slab surfaces from fractures and scratches during transport.

Technical Features

Adjustable Cross-Pad Configuration: Features a 4-pad layout on adjustable cross-beams, optimized specifically for stabilizing wide kitchen islands, L-shaped tops, and slabs with large sink cutouts.
Powered Pneumatic Tilting: Equipped with an air-driven 0° to 90° tilt mechanism operated via an ergonomic control, allowing smooth horizontal-to-vertical workpiece transitions.
Two-Stage Venturi Intake: Driven by an efficient compressed air ejector featuring an integrated aluminum silencer to ensure rapid suction hold times with reduced noise levels.
Advanced Corrosion Protection: Constructed with a rugged, electro-welded steel frame paired with premium stainless steel suction plates to withstand harsh, wet shop environments.
Acoustic & Luminous Safety Alarm: Outfitted with an independent, solar-recharged backup warning system to provide clear audio-visual alerts to operators.
Secure Slider Valve Control: Built with an anodized aluminum control slider valve that physically locks in the “connect” position to eliminate the threat of accidental load release.
Glycerine-Dipped Gauge Monitoring: Includes a stainless steel vacuum gauge filled with vibration-damping glycerine, featuring a color-coded face for fast status checks.
Integrated Safety Air Reservoir: Backed by an onboard aluminum vacuum reserve tank to securely hold the slab even during a sudden loss of inbound factory line pressure.

Tool Application Style

Custom Island & Shape Production: Custom-built for stone fabrication shops handling high-end, wide kitchen islands, breakfast bars, and fragile porcelain/ceramic countertops.
Versatile Weight Ranges: Available in specialized configuration formats supporting lifting capacities from 500 kg up to 1,000 kg depending on specific pad dimensional selections.
